Raise your trailer’s IQ
with AirBoxOne™

What the AirBoxOne™ Provides

Choose your build

Driver Notification

The driver will be notified when system alerts are triggered for issues with Tire Pressures, Brakes, Hubs, Lights Out, Door Position and other warnings.

System Alerts and Secure Cloud Communications

Alerts will be activated when there is a change in vehicle condition as detected by the various sensors. These alerts, along with real-time information on status, location, etc. are transmitted via secure cloud communications to authorized Drōv web-based mobile or desktop interface users and may also be provided to fleets via an available software API.

Vehicle Speed and Accelerometer

The system monitors real-time vehicle speed. The accelerometer allows monitoring vehicle movement when unconnected to tractor power or air-connected and also monitors for harsh impacts.

Cargo Camera

An image is taken when a door opens or closes. The camera also enables the calculation of a percentage-loaded value with the ability to view loads over selected dates, time periods and locations.

GPS Location

Real time GPS tracking occurs when the vehicle is running. Live trips can be monitored and all trips are stored for retrieval as needed. The system will also keep a record of the number of days parked.

Tire Pressure Monitoring System (TPMS)

TPMS sensors monitor tire pressure and temperature.

Ambient Temperature

If the temperature rises above or below the fleet-designated set point, system alerts will be immediately triggered. For refrigerated trailers, current temperature is monitored and recorded from 3 different zones. The number of zones to be monitored can be chosen by the fleet at the time of installation.

Automated Tire Pressure Inflation and Deflation

Individual tire PSI levels are monitored against the PSI set point designated by the fleet. The driver and fleet will be notified when the PSI level differs from the set point and the system will automatically adjust the level up or down as required.

Brake Pressure & Advanced Brake Chamber Monitoring

AirBoxOne integrates with the brake air supply system to monitor both parking and service line pressure for the system.

For vehicles equipped with Smart Brake Chambers, the AirBoxOne monitors each individual wheel end.

ABS & Disc Brake Monitoring

The driver and fleet will be notified if brake faults occur (with codes & information), if disc brake pad wear warnings are generated or if ABS is not getting power when connected to the Tractor.

Weight Sensor

Reads and provides the weight of the cargo load on the axles which can be correlated with tire pressure values.

Solar Panels

The solar panels provide a backup energy source for the AirBoxOne.

Door Position Sensor and Lock

The driver and fleet will be notified when the trailer doors are opened, closed and/or unlocked.

SKF Wheel End Monitor

AirBoxOne integrates with SKF TraX Wheel-End System to monitor wheel-end vibration and temperature

Rear-View Camera

Rear-view camera provides visibility behind the vehicle. Constant communication through the mobile app eliminates blind spots and assists with safe parking and backing up as well as rear vehicle proximity as it moves down the road.

Ultrasonic Backup Sensors

Ultrasonic sensors for backup proximity provide audible cues and visual aids to the driver for backing up, parking and vehicle proximity awareness. Paired with the rearview camera, these sensors provide ultimate visibility for the rear.

Exterior Cameras

AirBoxOne allows for additional camera applications throughout the vehicle to meet the needs of each fleet and trailer configuration. Additional cameras allow for increased security and asset monitoring.

In-Cab Health Display

The In-Cab Health Display provides the monitored health status of the CNG trailer at the press of a button. Health status for tires, lights, door position, and ABS are displayed. This data indicates the readiness of the trailer and can be used to facilitate driver pre-trip inspection display, maintenance and service communication and more.

CNG Pressure & Temperature Sensor

AirBoxOne monitors the pressure and temperature of individual CNG tanks.

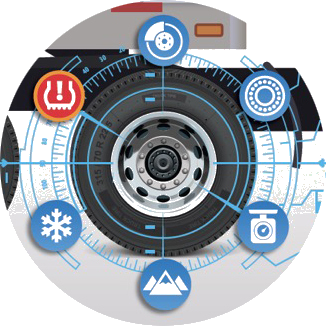

Drōv Smart Trailer Powered by AirBoxOne™

The AirBoxOne™ system combines Drōv’s proven and patented wheel-end rotary union hardware with electronic technology. With the AirBoxOne™, trailer tire pressure can be dynamically adjusted (increased or decreased) based on load weight. Data feeds, alerts and reports are produced for critical trailer operating conditions including tires, wheel ends, and numerous other sensor-monitored data points and are communicated directly from the vehicle to the fleet and the driver.

Explore

With AirBoxOne™, you’ll realize a measurable return on your investment and gain these significant operational, financial and safety benefits:

Enhanced proactive maintenance practices and timing
Increased load efficiency and capacity
Reduced cost-per-mile and lessened potential for roadside incidents
Instantly locate and deploy idle or underutilized assets and identify any detained assets
Reduced potential CSA violations and costly downtime which could result in missing delivery requirements
Extended life of your trailer assets
Improved service to YOUR customer

Deploying AirBoxOne™ on your fleet of trailers will provide you with real-time, actionable information and answers to questions you didn’t even ask! Talk to us about having AirBoxOne™ installed on your trailers with your next OEM trailer order and improve your bottom line.

Finally, a trailer that can keep up with the tractor.

Drōv Technologies proudly presents our flagship product: the Drōv Smart Trailer Powered by AirBoxOne™

Our Partners

Drōv Technologies values the opportunities to grow and benefit together with all of our partners.

OEM Partners

Smart Partners

Who is Drōv?
Innovation begins with disruption — new ideas, novel approaches and evolved expertise. We are innovators in the smart truck and trailer movement, creating solutions for every type of fleet.

Our mission is to deliver future-facing, durable systems to enhance client profitability and safety.
